Expansion Series

XP5-PS

Standalone Five-Output Power Supply.

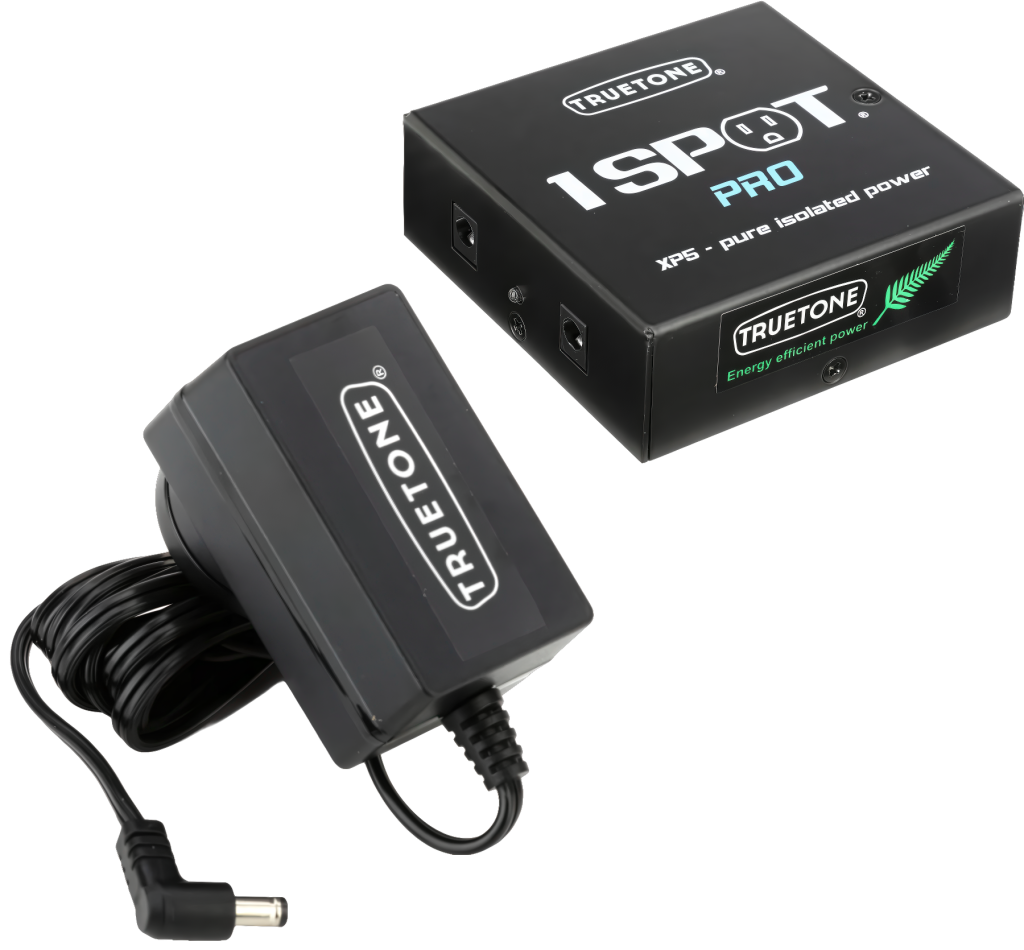

The XP5-PS brings the five-output XP5 expansion box together with an included 12Vdc 2.5A power adapter. Use it as a standalone unit for smaller rigs, or pair it with your CS11 to add five more fully isolated outputs to your setup.

Download Manual

XP5

Power Supplies · 1 SPOT Pro Expansion

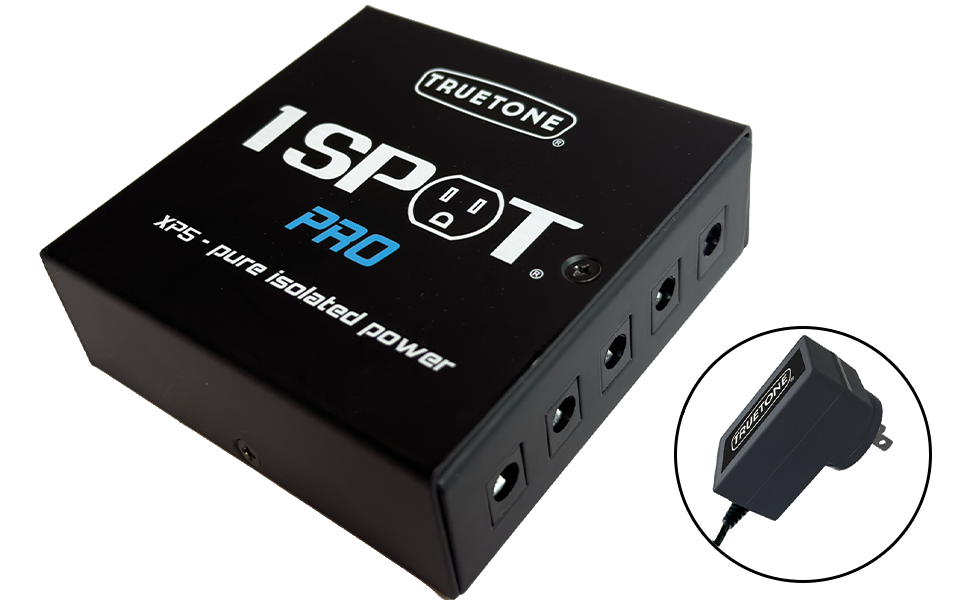

1 SPOT Pro XP5-PS

Five Isolated Outputs, Self-Contained

The XP5-PS is the XP5 expansion box with an included 12Vdc 2.5A power adapter. It plugs directly into any outlet — no host power supply needed. Use it as your primary power supply for compact rigs, or run it alongside a CS11 to extend your total output count.

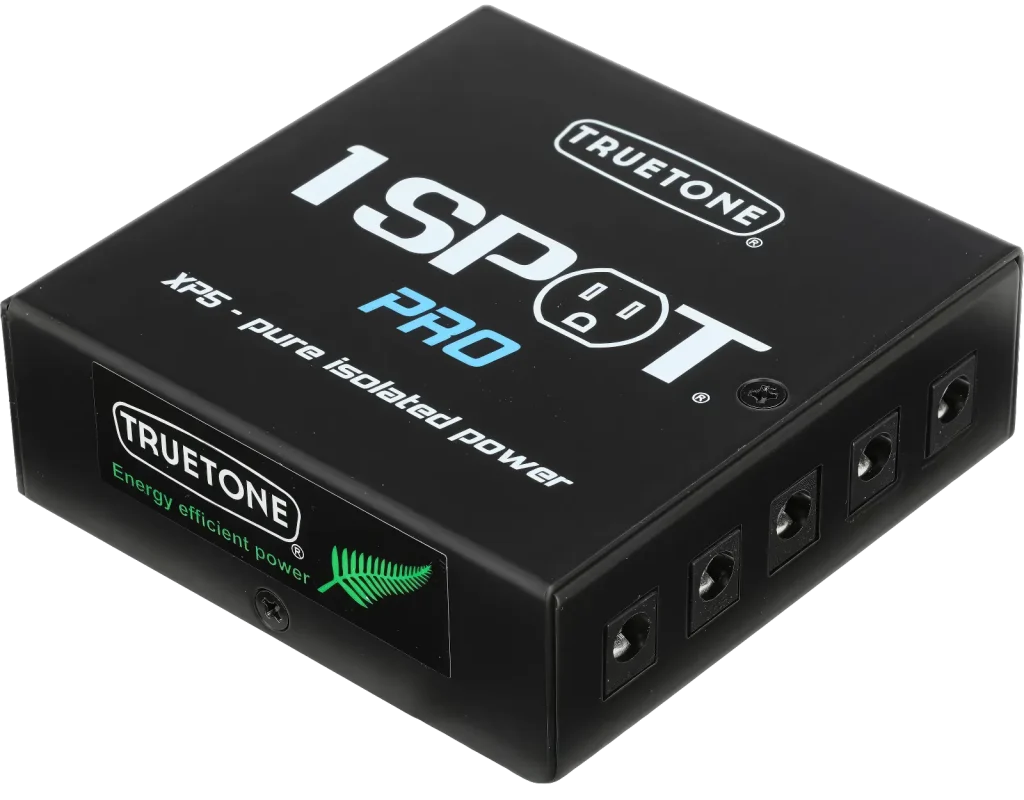

5 isolated, filtered outputs with an included worldwide power supply

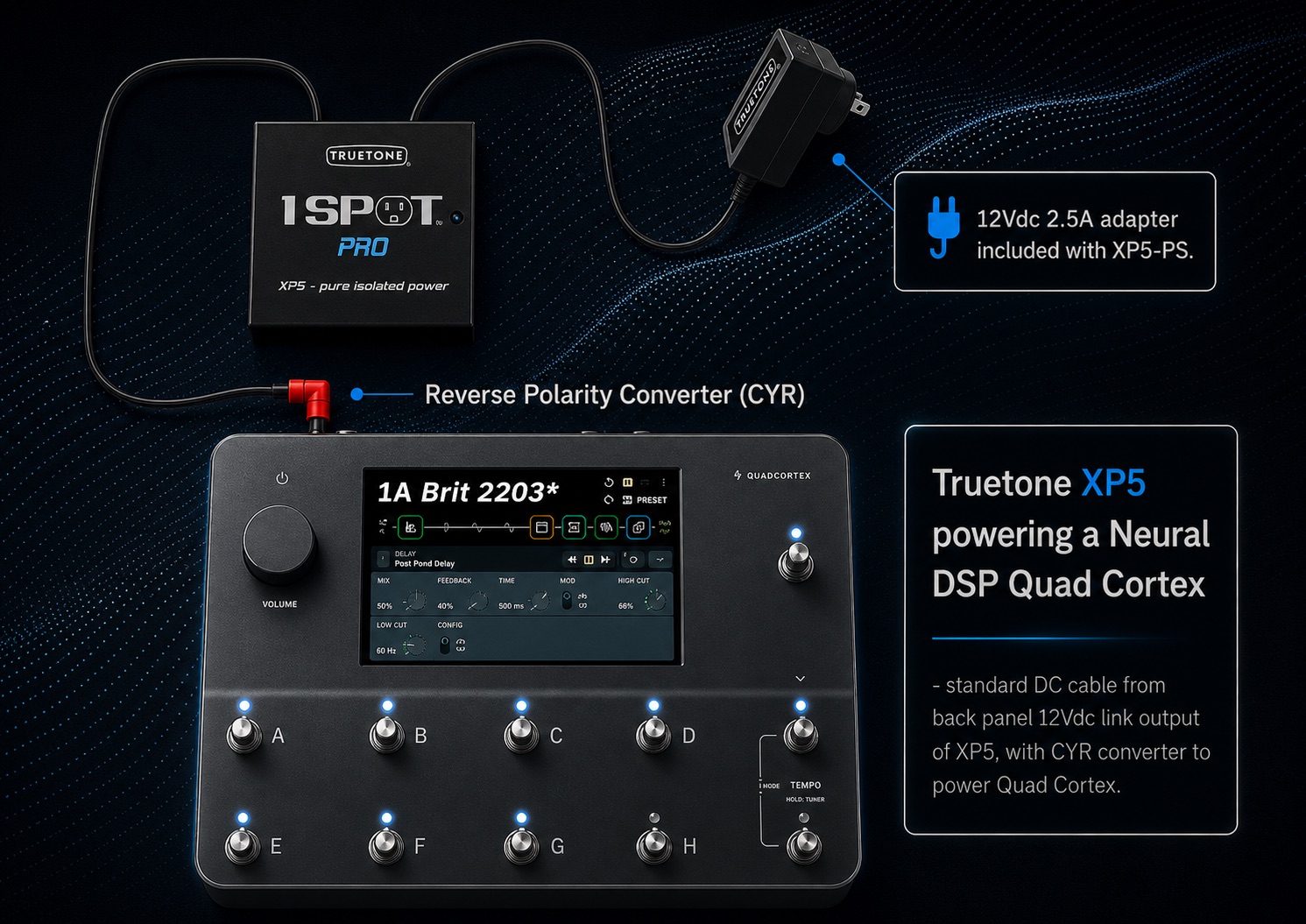

Use standalone or alongside CS11 for additional capacity
Worldwide input voltage: 100–240Vac, no step-up transformer needed

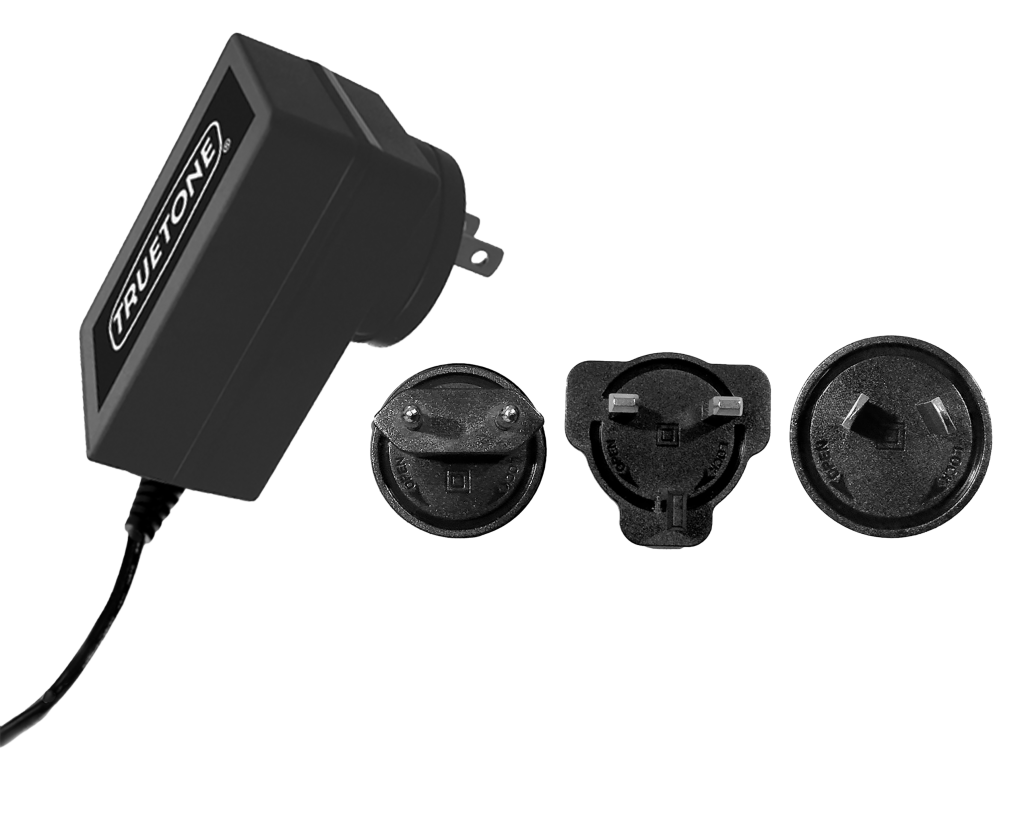

Power adapter with international plug set included
Cables and converter plugs included
5-Year Limited Warranty

$129.99 USD · Free US Shipping

Checking availability…

Download Owner's Manual (PDF)

The 1 SPOT Pro Story

Built Different.
By Design.

"A lot of people over the years had told us that we should make a power brick. I didn't want to make just another knock-off of someone else's power brick. If we were going to make one, we were going to do it our way and have features that nobody else could offer."

"It took 3 years and lots of experimentation, but we were finally able to design a 1 SPOT Pro using our own proprietary technology to give musicians all the features they need for today's pedalboards."

— Bob Weil, Founder & President, Truetone

Technical Specifications

XP5-PS
Specs

The XP5-PS pairs the five-output XP5 expansion box with an included 12Vdc 2.5A power adapter — making it a fully self-contained unit that can work independently of any other Truetone power supply.

Worldwide 100–240Vac input, pure isolation on all five outputs, and full compatibility with 1 SPOT Pro cable accessories. International plug adapters included.

Dimensions	88 x 88 x 30mm (3.46 x 3.46 x 1.18")
Weight	336 grams (0.74 lbs.) power supply only
Input Voltage	100–240Vac (worldwide)
Total Outputs	5 independently isolated

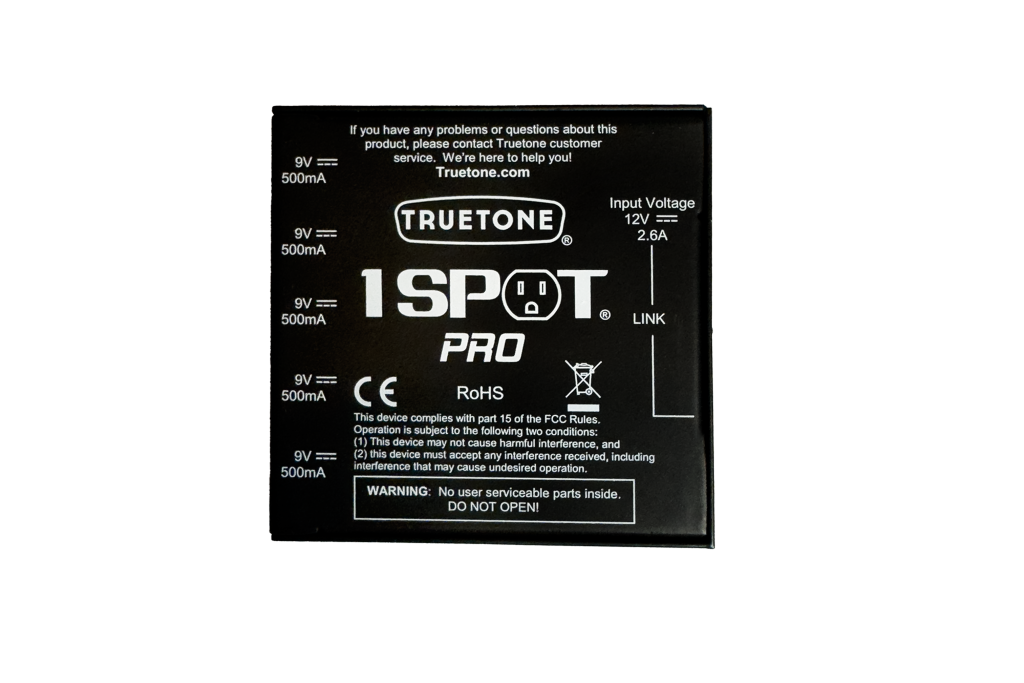

Output Voltages	Outputs 1–5 9Vdc · 500mA each

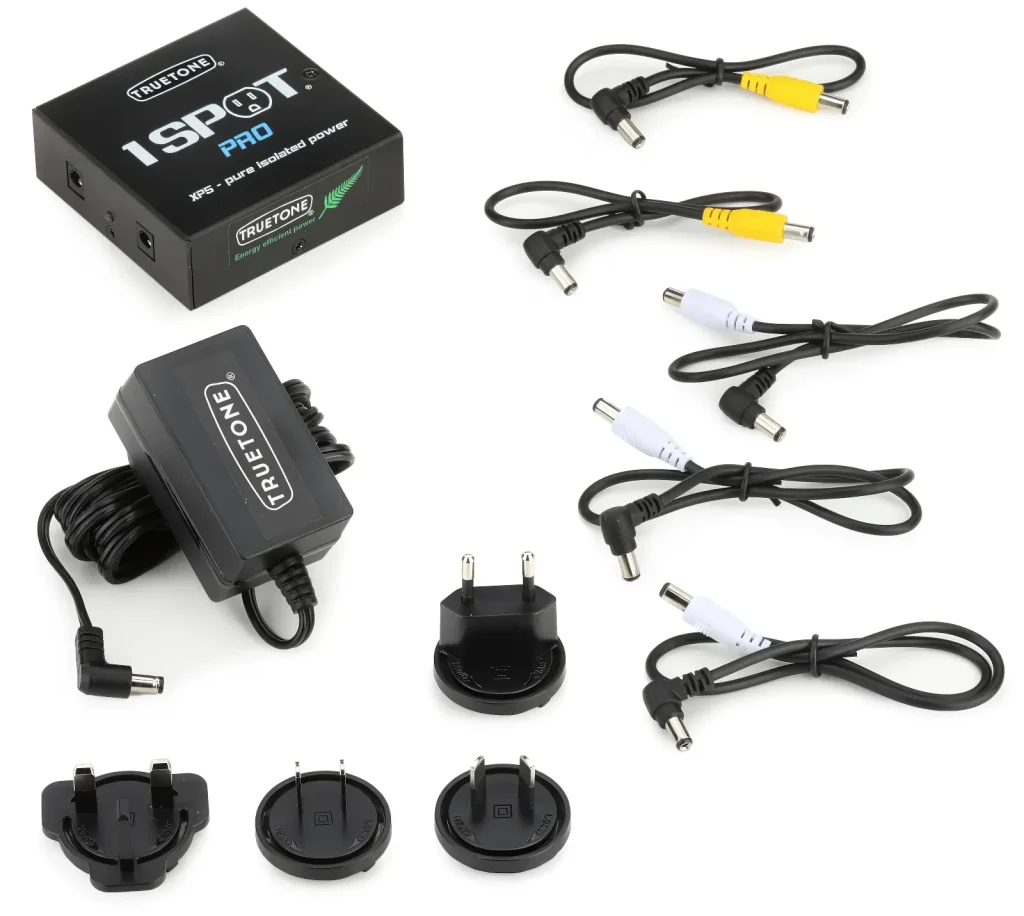

Included	Power adapter, international plugs, DC cables, converter plugs
Mounting	Velcro or Dual-Lock recommended
Warranty	5-Year Limited

Documentation

Owner's Manual &
Setup Guide

The XP5-PS manual covers standalone setup, output configurations, pairing with CS11, cable guide, and troubleshooting. Includes diagrams for international plug adapter installation.

Download Manual (PDF)

Video

Watch
And Learn

▶

Why It's Different

1 SPOT Pro Technology

Pure Isolation

Each output is galvanically isolated from all others, plus an additional layer of pure analog regulation (what Truetone calls Pure Isolation). Decades of refinement, zero compromise on noise.

Energy Efficient

Since pioneering switching power supply technology for musicians in 2000, Truetone has saved thousands of watt-hours per musician per year. The XP5-PS sets a new benchmark for efficiency.

Multiple Voltages

9Vdc, 12Vdc, and 18Vdc outputs to power every pedal on your board. Pair with the Truetone Voltage Doubler or 18V-to-9V converter for even more flexibility. *on certain models.

Rugged Steel Housing

All-steel construction, resistant to the accidental beer spill. Built for touring musicians who need gear that keeps up night after night.

Worldwide Voltage

Like the original 1 SPOT, the XP5-PS uses switching power supply technology to accept 100–240Vac input. Take it to any gig, anywhere in the world, without an adapter.

1 SPOT Technology

Proprietary switching power supply technology, not old transformer-based tech. Triple-filtered, completely noise-free, and capable of handling far more current than the output labels suggest.
